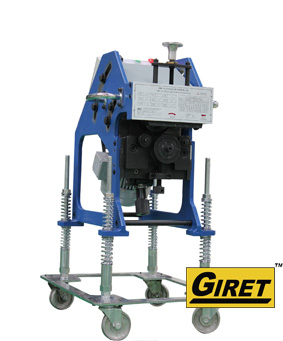

The GBM-12C Self-propelled Plate Bevelling Machine Instroduction:
This machine is the improvement of the GBM-12B-type Bevelling Machine, be described as the Self-propelled Plate Bevelling machine, Plate Chamfering Machine, and Portable Plate Bevelling Machine. The new speed reduction technology has been used in the machine to make it steadier.
GBM-12C Plate Self-propelled Plate Bevelling Machine Use of Scope:
It is widely used in pressure vessel factory, steel factory, construction machinery, aerospace, mining equipment production, petrochemical industry.
GBM-12C Plate Self-propelled Bevelling Machien Technical Parameters:
Power supply: AC 380V/220V 50Hz
Motor power: 1500W
Motor speed: 1400r/min
Min. bevel speed: 1.5m/min
Single bevel width:12mm
Max. bevel width: 18mm
Bevel angle: 25 degree to 45 degree( adjustable)
Plate thickness: 6~30mm
Min. plate width: 75mm
Min. pipe dia. : 110mm
N.W.: 175kg
GBM-12C Self-propelled Plate Bevelling Machine Features:
1. Use the high quality gear reducer and motor, and lower noise;
2. Complete the work automatically;
3. Bevel angle variety, can adjust between 25°to45°freely;
4. No decarburization phenomenon, can welding directly;
5. Install trolley to reduce the shake;
6. Max. single bevel width arrive 12mm, 18mm can be gotten by several times;
7. Processing speed bigger than 1.5m/min, and save the time greatly;
8. Totally automatic propel bevelling machine, low labor cost and intensity;
9. Export wooden packaging, regular transport to make machine intact;
10.Independent research and development, low maintenance cost.
GBM-12C Plate Self-propelled Plate Bevelling Machine Complete Bevel Drawing:
GBM-12C Plate Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):
|
Tensile Strength
|
Carbon Steel Kg/㎡
|
Tensile Strength
|
Stainless SteelKg/㎡
|
|
40
|
50
|
60
|
50
|
60
|
70
|
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
|
25°
|
12
|
11
|
10
|
9
|
8
|
7.5
|
25°
|
6
|
5.5
|
5
|
4.5
|
4
|
3.7
|
|
30°
|
12
|
10
|
10
|
8.5
|
8
|
7
|
30°
|
6
|
5.2
|
5
|
4.2
|
4
|
3.5
|
|
35°
|
12
|
9.5
|
10
|
8
|
8
|
6.5
|
35°
|
6
|
5
|
5
|
4
|
4
|
3
|
|
40°
|
12
|
9
|
10
|
7.5
|
8
|
6
|
40°
|
6
|
4.5
|
5
|
3.8
|
4
|
3
|
|
45°
|
12
|
8.5
|
10
|
7
|
8
|
5.5
|
45°
|
6
|
4
|
5
|
3.5
|
4
|
3
|
GBM-12C Plate Self-propelled Plate Bevelling Machine Package Standard:
|
|
|
|
|
Bevell Cutter
|
Tear Down Cutter
|
Hex Wrench
|
Hole Wrench
|
|
|
|
|
|
Open end Wrench
|
Certificate
|
Operation Manual
|
Products Manual
|
GBM-12C Plate Self-propelled Plate Bevelling Machine Processing Case:
