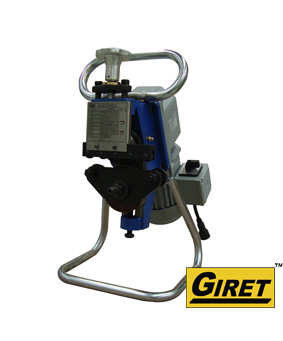

GBM-6C Self-propelled Plate & Pipe Bevelling Machine Introduction:
The machine can processing plate thickness 4 to 15mm, N.W. is 28.5kg, bevelling speed 1.2m/min.
GBM-6C Self-propelled Plate & Pipe Bevelling Machine Technical Parameters:
Power supply: AC 380V/220V 50HZ
Motor power: 400W
Motor speed: 1400r/min
Bevel speed: ≥1.2m/min
Single bevel width:6mm
Max. bevel width: 8mm
Bevel angle: 25 degree, 30 degree, 35 degree, 40 degree, 45 degree.
Processing plate thickness:4-16mm
Processing plate width: ≥55mm
Pipe dia.: :≥110mm
N.W. : 28.5kg
Processing pipe-line dia.: ＞300mm
GBM-6C Self-propelled Plate & Pipe Bevelling Machine Features:
1.Quickly bevelling;
2.Low labor intensity;
3.High efficiency;
4.Small volume, Light weight;
5.Low noise for bevel processing;
6.Cold bevelling without oxidation;
7.Efficency & freee maintenance gearbox.

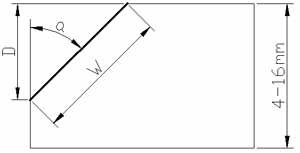

GBM-6C Self-propelled Plate & Pipe Bevelling Machine Complete Bevel Drawing:
GBM-6C Portable, Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):
|
Tensile strength |
Carbon Steel Kg/㎡ |
Tensile strength |
Stainless Steel Kg/㎡ |
|
40 |
50 |
60 |
50 |
60 |
70 |
|
a |
W |
D |
W |
D |
W |
D |
a |
W |
D |
W |
D |
W |
D |
|
25 |
6 |
5.5 |
5 |
4.5 |
4 |
3.5 |
25° |
4 |
3.5 |
3 |
2.5 |
2.5 |
2 |
|
30° |
6 |
5.2 |
5 |
4.2 |
4 |
3.2 |
30° |
4 |
3.2 |
3 |
2.2 |
2.5 |
2 |
|
35° |
6 |
4.8 |
5 |
4 |
4 |
3 |
35° |
4 |
3 |
3 |
2 |
2.5 |
1.8 |
|
40° |
6 |
4.5 |
5 |
3.8 |
4 |
2.8 |
40° |
4 |
2.8 |
3 |
1.8 |
2.5 |
1.8 |
|
45° |
6 |
4 |
5 |
3.5 |
4 |
2.5 |
45° |
4 |
2.5 |
3 |
1.5 |
2.5 |
1.5 |
GBM-6C type Bevelling Machine Package:
 |
 |
 |
 |
|
Bevell Cutter |
Tear Down Cutter |
Hex Wrench |
Hole Wrench |
 |
 |
 |
 |
|
Open end Wrench |
Certificate |
Operation Manual |
Products Manual |
GBM-6C type Bevelling Machine Processing Case:
