GBM-6

Date:2012/12/25 11:08:23 Times:8498 Sources:GIRET

Descriptions:


The mahcine's video Click

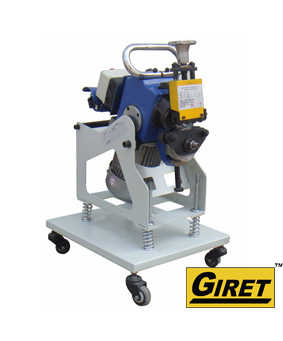

GBM-6 type bevelling machine introduction:
The portable, self-propelled plate bevelling machine plate edge bevellers produce clean machined bevels with no thermal distortion on mild steel, stainless steel and aluminum plate from 4mm to 16mm, First processing bevelling width is 6mm (finally complete is 8mm), beveling speed is over 1.2m/min, Cold beveling, free deformation of sheet materials, guarantee the quality of welding.

GBM-6 type bevelling machine technical parameters:
Power supply: AC 220V/380V 50Hz
Motor speed: 1450P.R.M
Motor power: 0.75Kw
Single bevelling width: 6mm
Max. bevelling width: 8mm
Bevelling speed: ≥1.2m/min
Bevel angle: 25 degree, 30 degree, 35 degree, 40 degree, 45 degree.
Min. plate thickness: 4mm
Max. plate thickness:16mm
Min. plate width: 55mm
Min pipe dia.: 110mm
N.W.: 40kg

GBM-6 type bevelling machine features:
1. This machine adopts big power motors to drive, steady operation at a low speed, dolly base, automatic feed along the edge of armor plate, adjustable height, can be used for beveling of big sheet materials.
2. Machine body fixed facilitates for beveling of small sheets.
3. Cold beveling, free deformation of sheet materials, guarantee the quality of welding.
4. Angle of machine head can be adjusted, the angles of beveling: 25°,30°,35°,40°,45°.
5. The Plate bevelling machine is made in china GIRET factory.

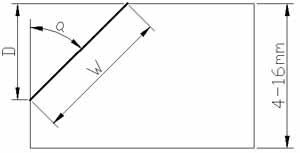

GBM-6 type bevelling machine complete bevel drawing:


GBM-6 type bevelling machine processing data table (Single run bevelling table):

Tensile strength

Carbon Steel Kg/

Tensile strength

Stainless Steel Kg/

40

50

60

50

60

70

a

W

W

D

W

D

a

W

D

W

D

W

D

25

6

5.5

5

4.5

4

3.5

25°

4

3.5

3

2.5

2.5

2

30°

6

5.2

5

4.2

4

3.2

30°

4

3.2

3

2.2

2.5

2

35°

6

4.8

5

4

4

3

35°

4

3

3

2

2.5

1.8

40°

6

4.5

5

3.8

4

2.8

40°

4

2.8

3

1.8

2.5

1.8

45°

6

4

5

3.5

4

2.5

45°

4

2.5

3

1.5

2.5

1.5


GBM-6 type bevelling machine package:

Bevell Cutter

Tear Down Cutter

Hex Wrench

Hole Wrench

Open end Wrench

Certificate

Operation Manual

Products Manual


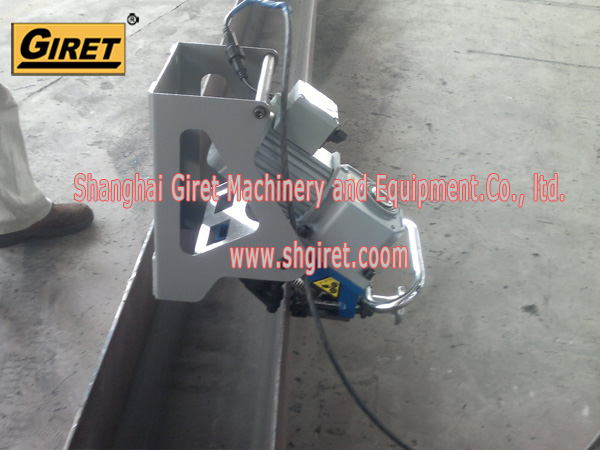

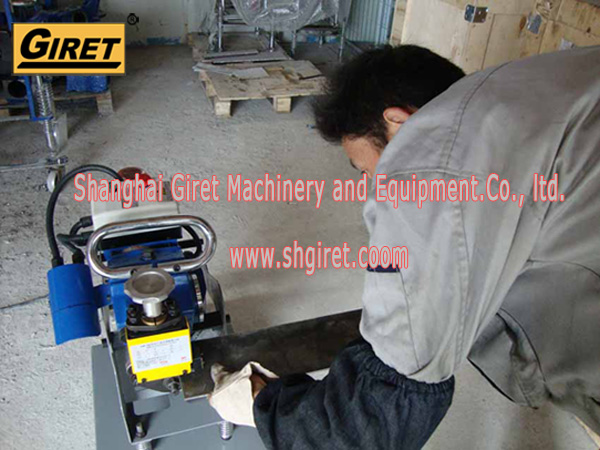

GBM-6 Type bevelling machine processing case:




Related products:



Go back】 【Print】【Top】 【Close
Prev: GBM-12A
Next: GBM-6C
