GBM-16C

Date:2012/12/25 15:58:40 Times:9093 Sources:GIRET

Descriptions:

The machine's video Click

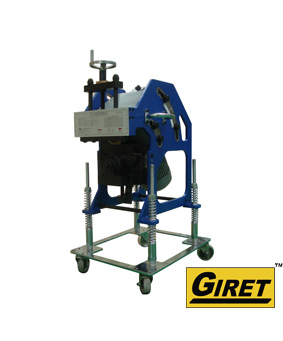

GBM-16C Self-propelled Bevelling Machine Instroduction
It is the improvement of GBM-20 Self-propelled Bevelling Machine. More stable and light compared to the same types of products. No need to handle bevel surface twice for the cold process and no oxidation on the surface.


GBM-16C
Self-propelled Bevelling Machine Use of Scope
Work automatically, and suitable for shipbuilding, pressure vessel, aerospace and so on industry.


GBM-16C Self-propelled Bevelling Machine Technical Parameters
:
Power supply: AC 380V/220V 50Hz
Motor power: 2200W
Motor speed: 1400r/min
Bevel speed: ≥1.2m/min
Max. bevel width: 28mm
Single bevel width:16mm
Bevel angle: 25 degree~ 45 degree (adjustable)
Processing plate thickness:9~40mm
Min. Plate width: 115mm
Min. Pipe Dia: 200mm
N.W.: 212kg

GBM-16C  Self-propelled Bevelling Machine Features:
1. Small size, light . Only 210kg;
2. Single bevel width 16mm;
3. Work automatically, and bevel speed more than 1.2m/min;
4. High efficiency gear box reduce the damage;
5. Low noise;
6. Completely cold process, no oxidation on the surface;
7. Sound after-sales service

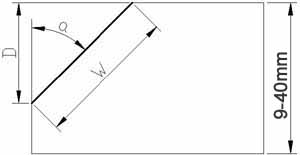

GBM-16C Self-propelled Bevelling Machine Complete Bevel Drawing:


GBM-16C Self-propelled Bevelling Machine Processing Data Table(Single beveling table):

Tensile Strength

Carbon Steel Kg/

Tensile Strength

Stainless Steel Kg/

40

50

60

50

60

70

   a

W

D

W

D

W

D

   a

W

D

W

D

W

D

25°

16

14.5

13

11.5

10

9

25°

8

7

6

5.5

5

4.5

30°

16

14

13

11

10

8.5

30°

8

6.5

6

5.2

5

4.2

35°

16

13

13

10.5

10

8

35°

8

6

6

5

5

4

40°

16

12

13

10

10

7.5

40°

8

5.5

6

4.5

5

3.8

45°

16

11

13

9

10

7

45°

8

5

6

4

5

3.5

Note:1Kg/=9.8Pa


GBM-16C Self-propelled Plate Bevelling Machine Package Standard
:

Bevell Cutter

Tear Down Cutter

Hex Wrench

Hole Wrench

Open end Wrench

Certificate

Operation Manual

Products Manual
