GBM-12A

Date:2012/12/25 11:34:09 Times:9226 Sources:GIRET

Descriptions:


The machine's video Click

GBM-12A Type Self-propelled Plate Bevelling Machine Introductions:
The sheet bevelling machine GBM-12A "mills" according to a special principle where the milling tool "bites" itself in the material "slides off" the material form the sheet. The turning movement of the milling cutter also provides the transport of the sheet material. Because of this, a fixed cutting-speed of approximately 1.5m/min is possible.


GBM-12A Type Portable, Self-propelled Plate Bevelling Machine Technical Paremeters:
Power supply: AC 380V 50Hz
Motor speed: 1450P.R.M
Motor power: 2.2 Kw
Min. plate thickness: 6mm
Max. plate thickness: 30mm
Min. plate width: 55mm
Min. pipe dia.: 110mm
Single bevel width: 12mm
Max. bevel width: 18mm
Bevel speed:
≥1.5m/min
Bevel angle: 25 degree, 30 degree, 35 degree, 40 degree, 45 degree.
N.W.: 105kg


GBM-12A Type Portable, Self-propelled Plate Bevelling Machine Features
:

1. This machine adopts big power motors to drive, steady operation at a low speed, dolly base, automatic feed along the edge of armor plate, adjustable height, can be used for beveling of big sheet materials.
2. Machine body fixed facilitates for beveling of small sheets.
3. Cold beveling, free deformation of sheet materials, guarantee the quality of welding.
4. Angle of machine head can be adjusted, the angles of beveling: 25°,30°,35°,40°,45°.
5. The Plate bevelling machine is made in china GIRET factory.


GBM-12A Type Portable, Self-propelled Plate Bevelling Machine
Complete Bevel Drawing
:


GBM-12A Type Portable, Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):

Tensile Strength

Carbon Steel Kg/

Tensile Strength

Stainless Steel Kg/

40

50

60

50

60

70

a

W

D

W

D

W

D

a

W

D

W

D

W

D

25°

12

11

10

9

8

7.5

25°

6

5.5

5

4.5

4

3.7

30°

12

10

10

8.5

8

7

30°

6

5.2

5

4.2

4

3.5

35°

12

9.5

10

8

8

6.5

35°

6

5

5

4

4

3

40°

12

9

10

7.5

8

6

40°

6

4.5

5

3.8

4

3

45°

12

8.5

10

7

8

5.5

45°

6

4

5

3.5

4

3


GBM-12A Type Portable, Self-propelled Plate Bevelling Machine Package Standard:

Bevell Cutter

Tear Down Cutter

Hex Wrench

Hole Wrench

Open end Wrench

Certificate

Operation Manual

Products Manual

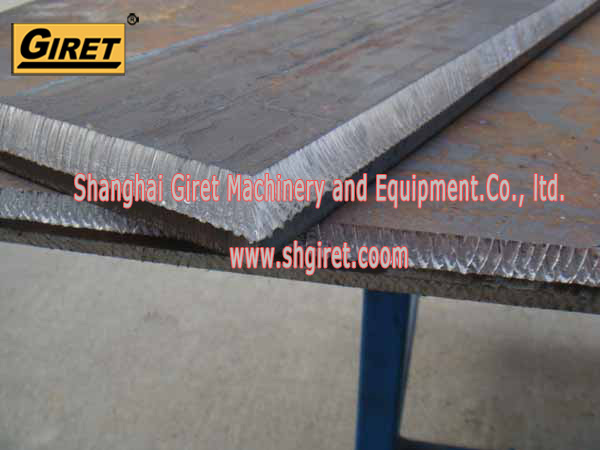

GBM-12A Type Portable, Self-propelled Plate Bevelling Machine Processing Case:
