GBM-12C-R

Date:2012/12/25 15:49:04 Times:10185 Sources:GIRET

Descriptions:


The machine's video Click

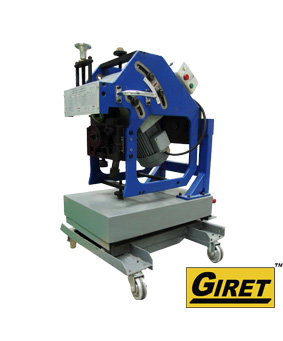

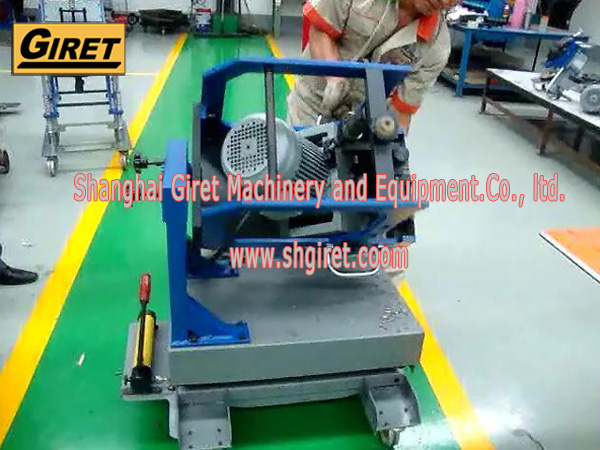

The GBM-12C-R Self-propelled Plate Bevelling Machine Instroductions:
This type machine can complete the work automatically, and just flip the machine after beveling up side, it will process the down sides directly. More than 2.2m/min speed. It belongs to X-type bevel machine.


GBM-12C-R Plate Self-propelled Plate Bevelling Machine Use of
Scope
:
It is suitable for the plate which thickness lower than 30mm and bevel double sides. Also it is widely used in Steel Construction, Pressure Vessel, aerospace and petrochemical industry.


GBM-12C-R Plate Self-propelled Bevelling Machien Technical Parameters:

Power supply: AC 380V/220V 50Hz
Motor power: 1500W
Motor speed: 1400r/min
Bevel speed: ≥1.5m/min
Max. bevel width: 18mm
Single bevel width: 12mm
Bevel angle: 25 degree~45 degree( adjustable)
Plate thickness: 6~30mm
Min. plate width: 75mm
Min. pipe dia.: 110mm
N.W.: 270kg


GBM-12C-R Self-propelled Plate Bevelling Machine Features:
1.Small size and light, only 210kg
2.Design rotation device, machine can complete the down side bevel

3.Speed more than 2.0m/min, high efficiency

4.Low labor intensity for automatic working

5.
Cold process, no non oxidation on the surface

6.Low noise.


GBM-12C-R Plate Self-propelled Plate Bevelling Machine
Complete Bevel Drawing:


GBM-12C-R Plate Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):

Tensile Strength

Carbon Steel Kg/

Tensile Strength

Stainless Steel Kg/

40

50

60

50

60

70

a

W

D

W

D

W

D

a

W

D

W

D

W

D

25°

12

11

10

9

8

7.5

25°

6

5.5

5

4.5

4

3.7

30°

12

10

10

8.5

8

7

30°

6

5.2

5

4.2

4

3.5

35°

12

9.5

10

8

8

6.5

35°

6

5

5

4

4

3

40°

12

9

10

7.5

8

6

40°

6

4.5

5

3.8

4

3

45°

12

8.5

10

7

8

5.5

45°

6

4

5

3.5

4

3


GBM-12C-R Plate Self-propelled Plate Bevelling Machin, e Package Standard:

Bevell Cutter

Tear Down Cutter

Hex Wrench

Hole Wrench

Open end Wrench

Certificate

Operation Manual

Products Manual


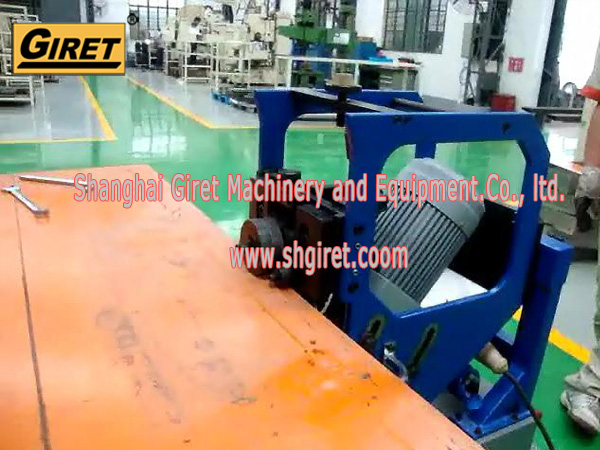

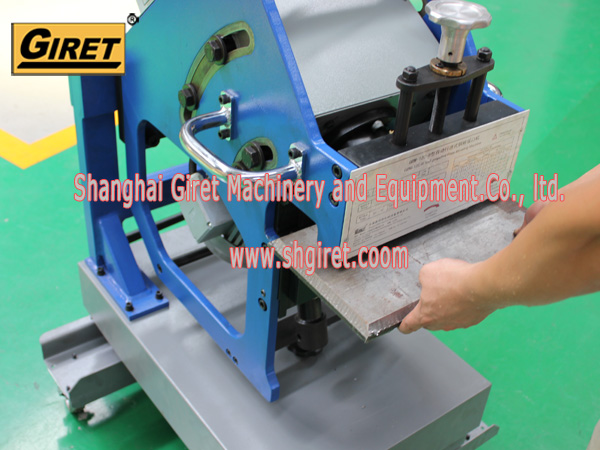

GBM-12C-R Plate Self-propelled Plate Bevelling Machine Processing Case:
