Current Position:Home->Product Show ->GBM-16C-R

GBM-16C-R

Date:2012/12/26 10:16:09 Times:8243 Sources:GIRET

Descriptions:

The mahcine's video Click

The GBM-16C-R Self-propelled Plate Bevelling Machine Instroductions:
This type machine can complete the work automatically, and just flip the machine after beveling up side, it will process the down side directly. The beveling speed more than 1.2m/min, plate thickness can arrive 30mm, It is also named as X-type Plate Bevelling Machine, Edge Planer Machine and Plate Chamfering Machine.


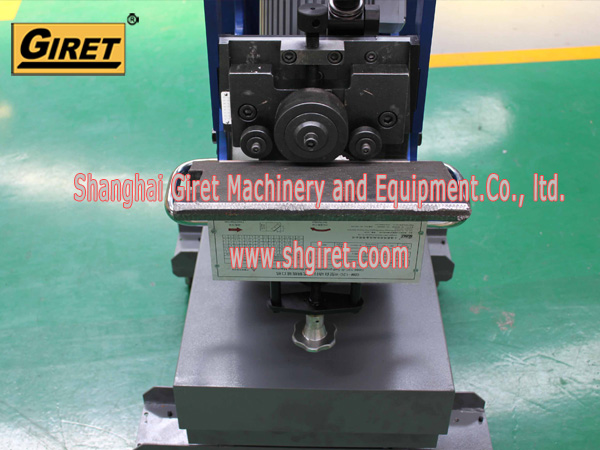

GBM-16C-R Plate Self-propelled Plate Bevelling Machine
Use
 of Scope:
It is widely used in aerospace, petrochemical, pressure vessel, steel construction, and engineer machinery industry. Also suitable for the carbon steel, stainless steel ,aluminum alloy
and other materials.


GBM-16C-R Plate Self-propelled Bevelling Machien Technical Parameters:
Power supply: AC 380V/220V 50Hz
Motor power: 2200W
Motor speed: 1400r/min
Bevel speed: ≥1.2m/min
Max. bevel width: 28mm
Min. bevel width: 16mm
Bevel angle: 25 degree ~ 45 degree
Processing plate thickness: 9 ~ 40mm
Min. plate width: 115mm
N.W.:310kg

GBM-16C-R Self-propelled Plate Bevelling Machine Features:
1. Small size, light and only 260kg;
2.
Design rotation device, machine can complete the down side bevel;
3.
Speed more than 2.0m/min, high efficiency;
4.
Low labor intensity for automatic working;
5.
Cold process, no non oxidation on the surface;
6. Low noise.


GBM-16C-R Plate Self-propelled Plate Bevelling Machine
Complete Bevel Drawing:


GBM-16C-R Plate Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):

Tensile Strength

Carbon Steel Kg/

Tensile Strength

Stainless SteelKg/

40

50

60

50

60

70

 a

W

D

W

D

W

D

 a

W

D

W

D

W

D

25°

16

14.5

13

11.5

10

9

25°

8

7

6

5.5

5

4.5

30°

16

14

13

11

10

8.5

30°

8

6.5

6

5.2

5

4.2

35°

16

13

13

10.5

10

8

35°

8

6

6

5

5

4

40°

16

12

13

9.5

10

7.5

40°

8

5.5

6

4.5

5

3.8

45°

16

11

13

9

10

 7

45°

8

5

6

4

5

3.5


GBM-16C-R Plate Self-propelled Plate Bevelling Machin, Package Standard:

Bevell Cutter

Tear Down Cutter

Hex Wrench

Hole Wrench

Open end Wrench

Certificate

Operation Manual

Products Manual

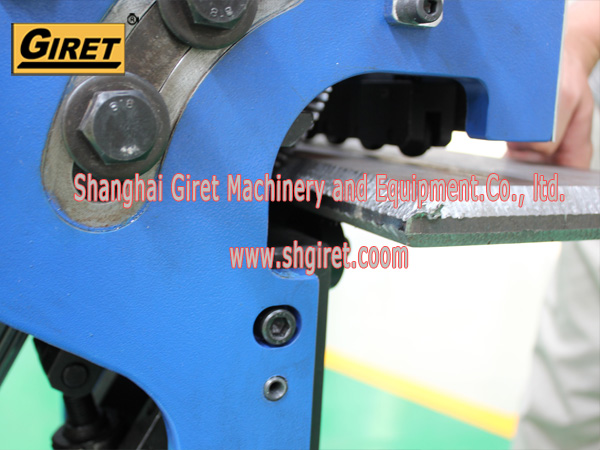

GBM-16C-R Plate Self-propelled Plate Bevelling Machine Processing Case.
